    Bolted Bonnet Stainless Steel / Cast Steel Gate Valve 6" 150lb ASME B16.34 ASME B16.10

    Ask Lasest Price
    Brand Name : TEYI
    Model Number : Z41W
    Certification : ISO/CE/API/SGS
    Price : negotiation
    Payment Terms : T/T; L/C,Western Union
    Supply Ability : 6500pcs per month
    Delivery Time : 7-15 working days after received payment
    • Product Details
    • Company Profile

    Bolted Bonnet Stainless Steel / Cast Steel Gate Valve 6" 150lb ASME B16.34 ASME B16.10

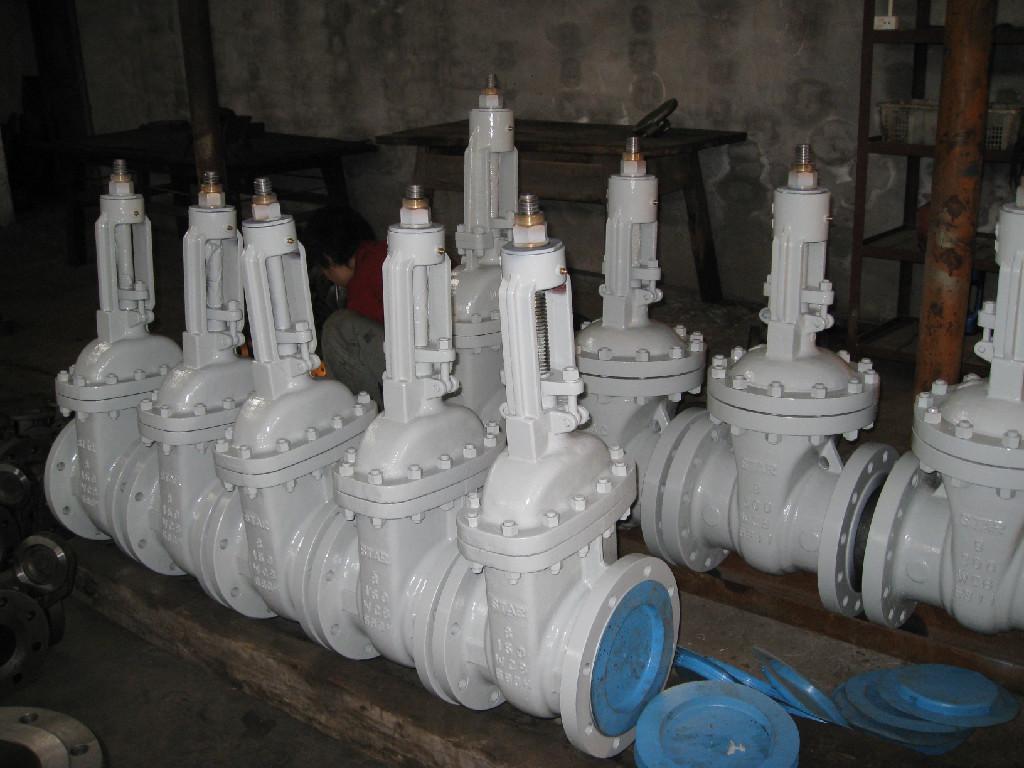

    6" 150lb OS&Y,Bolted bonnet Stainless Steel/Cast Steel Flanged Gate Valve


    Product Description:


    Its full port design OS & Y, Outside Screw and Yoke. Bolted Bonnet or Pressure Sealed Type


    Rising Stem or Non-Rising Stem. Choice of Solid or Split Wedge


    Fexible Wedge, Fully Guided. Back-seating, Renewable Seat Ring


    Lift stem, stem & disc connected by T slot, and stem T head integrally forged to ensure sufficient strength of joint. Flexible graphite packing for dependable sealing performance. If requested by users, packing spacer ring and greasing mechanism can be available.


    Top-mounted stem nut can prevent stem disc from falling off when valve is at open position and hand wheel is taken off. Operation: Hand wheel, Worm wheel, Pneumatic actuator and Electric actuator.


    Technical Specifications:

    • Design & Manufacture standard: API 600, API 6D
    • Pressure & Temperature standard: ASME B16.34
    • Face to face dimension standard: ASME B16.10
    • Flange standard: ASME B16.5, ASME B16.47
    • Test & Inspect: API 598


    Gate Valve Z41W RF
    NONameMaterialNONameMaterial
    1BodyA351-CF89BoltA320-B8
    2DiscA351-CF810GlandA351-CF8
    3StemA182-F30411NutA194-8.8a
    4GasketPTFE12Stem NutZCual10Fe3
    5BonnetA351-CF813BoltA320-B8
    6BoltA320-B814BoltA320-B8
    7NutA194-8.8a15HandwheelKTH350
    8FillerPTFE16NutA194-8.8a

    Our Advantage:

    1. We have more than 30years experiences to explore market.

    2. We have more than 120 types body moulds, which include ISO,DIN,ANSI,BS standard.

    3. We own full-automatic machine paint line, match high-temperature
    baking house,which makes smooth paint and good appearance of valve.

    4. Design-cast-machining-assemble-sale-after sale service.Perfect production and service,efficient and professional sales team,what we sale is not products, but solution for you!


    We regards"high quality products and customer satisfaction"as
    belief,regards "reasonable price, attentive service and most reliable
    quality" as basic of company. We make the following commitments to
    you.
