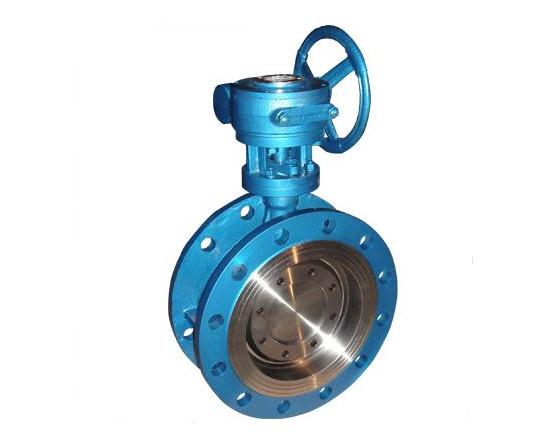

Zero Leakage Triple Eccentric Butterfly Valve , Metal Seal Flange Type Butterfly Valve

Description:
1. Elastic property of composite metal sealing ring to perform zero leakage.
2. Torque seal to ensure persistent bidirectional tightness with zero leakage.
3. The design of right-angled rotacting with zero friction is implemented by the distinctive triple eccentric principle, it eliminates the frictionbet-ween the seat and sealing ring in 90 degree rotation.
4. STL one-pice hard surface seat may adapt to working conditions,which is featured by long service life and easy maintenance.
5. One piece cast (Sheet welded) body, face to face dimnesion confirming to ISO5752, ASME B16.10 and API609, replacement to high performance butterfly valves and other types of valves,easy and flexible installation.
6. All metal structure and leak-tight performance meet with friesafety.
7. Anti-blowout stem for high depenedability, completely conforming to API609
8. The valve position indicator on the stem and the flange mounted at the top are in favor of the indication of disc position.
9. The stem of triple eccentric butterfly valve is a shaft, stem and disc are connected by key or pin-key combination.
10. Operation: Lever, Gear box, Pneumatice, Motor.

Standard:

Specifications:

Dimmesion:

Typical Application:
1 . Checmical
2 . Petrochemical processing
3 . Food and Beverage
4 . Power and Utilities
5 . Pulp and Paper

We are committed to offering porducts that meet a wide range of appications and requirments. We continually improve our product line by introducing new products and enhancing exsiting designs. Providing our customers with the best quality on the market.

 ZHEJLANG TEYL VALVE CO.,LTD.was founded in 1988,with many years of history In valve production,We specialize in scientific research,designing manufacturing,sales and service.The company IS located in Longwan District which has been regarded as “China Valves City”and“China Stainless Steel Production Base”.This district has unique regional advantage and the factory area is close to airport and Long wan international container wharf, It is near Dongtou in the east and is not farfrom railway station in the south.Yandang Mountain is easy of access,with charming scenery.

  There are currently more than 230 employees and 40 engineering technicians,including 10 senior engineers.By introducing international advanced management pattern and attracting technical elites of valve industry,the company has had large scale Intensive production capacity after twenty years of development. Many workshops of welding mechanical processing assembly and paint-spraying are set up in the company,There are processing centre.numerical control machine tool,plasma resurfacing welding as well as over 200 set of varous valve processing machine equipments.

   Main products include: gate valve globe valve ball valve check valve butterfly valve hydraulic control valve ANSI valve,sanitary level valve and pipe fitting,which have more than 30 varieties,with over 130 series and thousands of models and seproducts are designed and manufactured according to domestic and overseas standards such as ISO、API、ANSI、BS、DIN、JIS、GB、JB and so on They are widely applied to the in dustries like petroleum,chemical engineering,metallurgy,pharmacy,food,electric power,supply and discharge of water and so on.All products have been sold far to large and medium sized enterprises at home.The company IS dedicated to exploring international markets to have currently exported millions of sets of valves,which are sold abroad to more than ten countries and regions in Middle East,Southeast Asia Europe and America,enjoying good reputation among numerous customers.

 Both domestic and overseas advanced production technology are absorbed by our company toseek for continuous innovation and greater perfection of products from design,development performance detection,material selection,processing to assembly so as to ensure that appearance,performance and economy of products can meet clients demands. u in the east and is not farfrom railway station in the south.Yandang Mountain is easy of access,with charming scenery.

  Specialization and high quality are the modes of business operation of our company.It is our service mode to be considerate of customers from the angle of details,In today's increasingly competitiv e market .we persistently adhere to the operation objective of seeking for development on quality,benefity,on management,market on credit and strive forfostering “Teyi” brand.We sincerely welcome friends from all walks of life to visit us for business talks to make common progress hand in hand!
