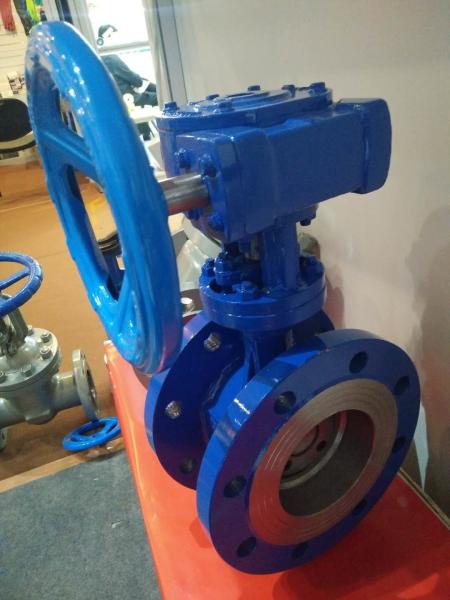

Stainless Steel Seat Worm Gear Flanged End Eccentric Butterfly
Valve DN100
Product Description:
Product Description
Double Flanged Butterfly Valve
Body:Ductile iron/SS316/304/WCB etc
Disc: Ductile iron/SS316/305/Aluminum-bronze etc
Stem:SS416/420 etc
Seat:EPDM,NBR,VITON
Painting:Expoxy paint
Methods of operation: Gear wheel/Electric actuator
Size:50-1200mm
Pressure:PN1.0/1.6MPa
Medium:Water/Sea water/Wash water/Oil
Temperature Range:-45-+135
Features:
Novel and reasonable design,special structure,light, Easy
instllation and mintenance.It can be mounted wherever needed.
Tiny operative moment,quick 90 degrees on-off operation.
Miniminzed operating torque,energy saving.
Flow curve tending to straight line.Excellent regulation
performance.
Long servie life.Standing the test of tens of thousands
opening/closing operation.
Bubbles-tight sealing with no leakage under the pressure test.
Dimmesion:
| Size | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| L(mm) | 108 | 108 | 112 | 114 | 127 | 140 | 140 | 152 | 165 | 178 | 190 | 216 | 222 |
| H(mm) | 112 | 112 | 115 | 120 | 138 | 164 | 175 | 200 | 243 | 250 | 280 | 305 | 350 |
| Size | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | | |
| L(mm) | 229 | 267 | 292 | 318 | 330 | 410 | 470 | 530 | 600 | 670 | 760 | | |
| H(mm) | 380 | 445 | 480 | 530 | 580 | 650 | 760 | 850 | 1030 | 1230 | 1350 | | |
Typical Application:
1 . Checmical
2 . Petrochemical processing
3 . Food and Beverage
4 . Power and Utilities
5 . Pulp and Paper
Company information:
TEYL VALVE CO.,LTD.was founded in 1988,with many years of history
In valve production,We specialize in scientific research,designing
manufacturing,sales and service.The company IS located in Longwan
District which has been regarded as “China Valves City”and“China
Stainless Steel Production Base”.This district has unique regional
advantage and the factory area is close to airport and Long wan
international container wharf, It is near Dongtou in the east and
is not farfrom railway station in the south.Yandang Mountain is
easy of access,with charming scenery.
Main products include: gate valve globe valve ball valve check
valve butterfly valve hydraulic control valve ANSI valve,sanitary
level valve and pipe fitting,which have more than 30 varieties,with
over 130 series and thousands of models and seproducts are designed
and manufactured according to domestic and overseas standards such
as ISO,API,ANSI,BS,DIN,JIS,GB,JB and so on They are widely applied
to the in dustries like petroleum,chemical
engineering,metallurgy,pharmacy,food,electric power,supply and
discharge of water and so on.All products have been sold far to
large and medium sized enterprises at home.The company IS dedicated
to exploring international markets to have currently exported
millions of sets of valves,which are sold abroad to more than ten
countries and regions in Middle East,Southeast Asia Europe and
America,enjoying good reputation among numerous customers.
Competitive Advantages:
1. Our products is guaranteed within 18 months after delivery.
2. We offer free sample if interest before orders.
3. Technology renovation, process improvement, structure
optimization and quality improvement.
4. Excellent after-sales service system, providing timely and
optimal service, which help you to win the market.
5. Convenient shipping sea port, and standard exporting carton
boxes & plywood cases.
6. 100% inspection & testing before delivery.
7. Third party inspection on customer requirement.
We welcome all the world customers to contact us for more
cooperation.
With our years of technical knowledge and experience,we assure you,
TEYI will be one of your best parters in China.
