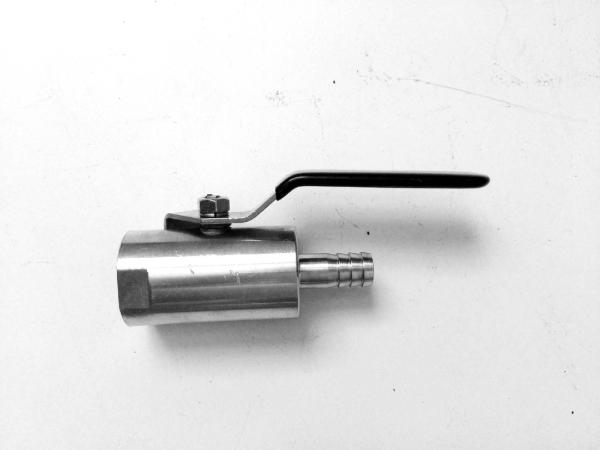

Guang Type DIN Threaded End Ball Valve 2 Inch 1PC 1000WOG Pressure

    Buy cheap Guang Type DIN Threaded End Ball Valve 2 Inch 1PC 1000WOG Pressure from wholesalers

    Buy cheap Guang Type DIN Threaded End Ball Valve 2 Inch 1PC 1000WOG Pressure from wholesalers
    • Buy cheap Guang Type DIN Threaded End Ball Valve 2 Inch 1PC 1000WOG Pressure from wholesalers
    • Buy cheap Guang Type DIN Threaded End Ball Valve 2 Inch 1PC 1000WOG Pressure from wholesalers
    • Buy cheap Guang Type DIN Threaded End Ball Valve 2 Inch 1PC 1000WOG Pressure from wholesalers
    • Buy cheap Guang Type DIN Threaded End Ball Valve 2 Inch 1PC 1000WOG Pressure from wholesalers

    Guang Type DIN Threaded End Ball Valve 2 Inch 1PC 1000WOG Pressure

    Ask Lasest Price
    Brand Name : TEYI
    Model Number : Q11
    Certification : CE/API/SGS
    Price : negotiation
    Supply Ability : 5000pcs per month
    Delivery Time : 7-15 working days after received payment
    • Product Details
    • Company Profile

    Guang Type DIN Threaded End Ball Valve 2 Inch 1PC 1000WOG Pressure

    Guang Type DIN Threaded End Ball Valve 2 Inch 1PC 1000WOG Pressure​



    Description:


    Stainless Steel Female Threaded End Ball Valve generally uses rubber, nylon and PTFE as the sealing material, so its temperature depends on the sealing. Ball valve closing function worked through compressed between plastic seats under the effect of the media, valve seat is deformed under the pressure. The deformation can compensate the manufacturing presison of the sphere and the roughness of the surface to ensure good sealing performance. Since the valve seat sealing ring is made of plastic, the fire resistance should be taken into consideration especially in petroleum, chemical, metallurgical and other departments, especially in flammable and explosive medium equipment and pipe fittings, should be paid more attention.


    Stainless Steel Female Threaded End Ball Valve has good sealing performance, so it applies to slurry, abrasion, reduced chanel, rapid opening and closing movement, high pressure closure, low noise, the phenomenon of cavitation and gasification, small leakage to the atmosphere, small torque, small fluid resistance of the piping system. In the low-temperature (cryogenic) equipment and piping system valve can also be used. In oxygen pipeline system of the metallurgical industry, need use the ball valve with strict treatment. When regulating performance needed, special structure valve with V shaped opening should be used. In the petroleum, petrochemical, chemical, electric power and urban construction, where the working temperature is over 200 centigrade in the pipeline system metal to metal sealing ball valve can be used.



    Features:

    ItemPartMaterial
    1BodyASTM A351 CF8MASTM A351 CF8ASTM A216 WCB
    2CapASTM A351 CF8MASTM A351 CF8ASTM A216 WCB
    3BallASTM A351 CF8MASTM A351 CF8ASTM A216 WCB
    4SeatPTFEPTFEPTFE
    5StemANSI 316ANSI 304ANSI 304
    6Thrust WasherPTFEPTFEPTFE
    7PackingPTFEPTFEPTFE
    8Gland NutANSI 304ANSI 304ANSI 304
    9HandleANSI 430ANSI430ANSI 430
    10WasherANSI 301ANSI 301ANSI 301
    11NutANSI 304ANSI 304ANSI 304


    Advantage:


    1, We offer the non-standard valves, according to customer requirements
    2, If you want, you can have your own logo on the products
    3, Exported to all over of the world
    4, We can promise the quality, passed the API,CE,SGS and ISO certification


    Choose me, do not hesitate:


    1, Design team: We have the professional design people, as u choose, Customer's sample is always welcomed
    2, Professional factory: We are manufacturer, specializing in manufacturing valves for many years, competitive price with good quality, the deadline usually is 30-45 days
    3, Sample: We can give out sample in 3 days, but the shipment charge usually paid by your side, the fee of it will be rebound when we have formal order.
    4, Rapid response to your needs: We will be answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
