API 6D Side Entry Flanged Ball Valve Class 150 Trunnion Mounted With Electric Actuator

Design Features:

1. Trunnion-mounted Ball:

The ball is fixed and the seat rings are floating, free to move along the valve axis.

Side load generated by the pressure acting on the ball is abosorbed by bearings.

At low pressure the seat sealing action is achieved by the thrust of the springs acting on the seat rings. As the pressure increase the fluid pressure pushes the seat rings against the ball.

2. Independent ball and stem

The ball and stem are independent to minimize the effect of the side thrust generated by the pressure acting on the ball

3. Anti-Static Design

The electrical conductance continuity between all the metallic conponents is guaranteed and certified.

4. Soft Seat valves:

In valves designed for standard service, a resilient material is inserted into the metal seat holder to provide a soft seating action in addition to the metal to metal seating between the ball and the seat rings

5. Metal Seat Valves

Valves designed for abrasive service or for operation in temperatures that prohibit the use of resilient meterial have seating action provided by the metal to metal contact between the ball and the seat rings. Seating faces are hardface.

6. Fire Safe

Trunnion-mounted ball valves are designed fire safe to API6FA, API607 ,BS6755 Part 2.

7. Actuaction

Hand operated valves are supplied either with a lever or gear operated

Actuacted valve can be supplied with Electrice actuator, Pneumatic Actuactor. Gear operators can be easily removed in-service and replaced with actuactors.

Material(Partial)

**Gear Operator, Electrical Operator, Hydraulic operator and etc,are avaliable

Note: Other materials are available upon request.

Design Standard:

• Design and manufacture: BS 5351/API 608/API 6D/ASME B16.34
• Face to Face Dimensions: ASME B16.10/API 6D
• Flange Ends Dimensions: ASME B16.5
• BW Ends Dimensions: ASME B16.25
• Pressure-Temperature Ratings: ASME B16.34
• Fire Safe Design: API 607/API 6FA
• Inspection and test Standard: API6D/API598

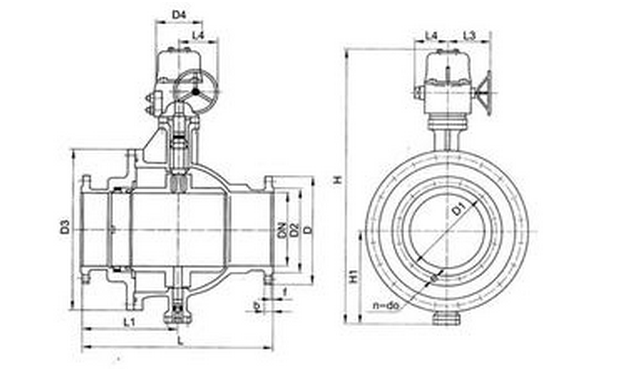

Dimension:

Certified Quality

All of our pressure tests and meterial checks are witnessed by an inspector who signs off on their accuracy. A laminated card is then attached to the valve with each test and material check indicated, as certification to our customer that these procedures have been followed. Eevery valve come with a certificate.

 ZHEJLANG TEYL VALVE CO.,LTD.was founded in 1988,with many years of history In valve production,We specialize in scientific research,designing manufacturing,sales and service.The company IS located in Longwan District which has been regarded as “China Valves City”and“China Stainless Steel Production Base”.This district has unique regional advantage and the factory area is close to airport and Long wan international container wharf, It is near Dongtou in the east and is not farfrom railway station in the south.Yandang Mountain is easy of access,with charming scenery.

  There are currently more than 230 employees and 40 engineering technicians,including 10 senior engineers.By introducing international advanced management pattern and attracting technical elites of valve industry,the company has had large scale Intensive production capacity after twenty years of development. Many workshops of welding mechanical processing assembly and paint-spraying are set up in the company,There are processing centre.numerical control machine tool,plasma resurfacing welding as well as over 200 set of varous valve processing machine equipments.

   Main products include: gate valve globe valve ball valve check valve butterfly valve hydraulic control valve ANSI valve,sanitary level valve and pipe fitting,which have more than 30 varieties,with over 130 series and thousands of models and seproducts are designed and manufactured according to domestic and overseas standards such as ISO、API、ANSI、BS、DIN、JIS、GB、JB and so on They are widely applied to the in dustries like petroleum,chemical engineering,metallurgy,pharmacy,food,electric power,supply and discharge of water and so on.All products have been sold far to large and medium sized enterprises at home.The company IS dedicated to exploring international markets to have currently exported millions of sets of valves,which are sold abroad to more than ten countries and regions in Middle East,Southeast Asia Europe and America,enjoying good reputation among numerous customers.

 Both domestic and overseas advanced production technology are absorbed by our company toseek for continuous innovation and greater perfection of products from design,development performance detection,material selection,processing to assembly so as to ensure that appearance,performance and economy of products can meet clients demands. u in the east and is not farfrom railway station in the south.Yandang Mountain is easy of access,with charming scenery.

  Specialization and high quality are the modes of business operation of our company.It is our service mode to be considerate of customers from the angle of details,In today's increasingly competitiv e market .we persistently adhere to the operation objective of seeking for development on quality,benefity,on management,market on credit and strive forfostering “Teyi” brand.We sincerely welcome friends from all walks of life to visit us for business talks to make common progress hand in hand!
